From Daily Life - 83: Tunnel ventilation

 During traveling by train or car, we often pass through tunnels. Unless the tunnel is very long, we pass through it almost unconsciously. My longtime friend, Mr. N, founded a company specialized in ventilation and safety equipment for automobile tunnels and celebrated its 25th anniversary this year. I was invited to the anniversary event to give a congratulatory speech, and it reminded me of my 40 years of commitment to the planning of major automobile tunnels in Japan. On this occasion, I introduce herewith briefly what tunnel ventilation is.
 With the advancement of railway electrification, railway tunnels with ventilation equipment are rare, except for subways. In the case of the longest railway tunnel in Japan, Seikan Tunnel (54 km), fresh air is supplied from two inclined shafts to its center to regulate the internal temperature and allow safe evacuation in the event of a fire. This is a special case because of its length and undersea condition.
 In automobile tunnels, ventilation must always be considered because it is necessary to dilute the pollutants emitted by engines (harmful gases such as carbon monoxide and nitrogen oxides and diesel soot) under the permissible limit. Harmful gases are toxic to the health of pedestrians through breathing, and diesel soot poses a risk to drivers by reducing visibility.
 Pollutants emitted inside a tunnel are carried to the outside by natural wind due to the difference in atmospheric pressure between the portals, traffic wind pushed by running automobiles, and diffusion caused by strong air turbulence generated by cars passing by. If these effects are strong enough, mechanical ventilation is not necessary. Most of short tunnels under 500 meters fall into this category.
 When a construction plan for an automobile tunnel over 500 meters is decided, the need for ventilation and safety equipment is determined, taking into account the traffic volume, one- or two-way, terrain conditions, and environmental regulations near the portals.

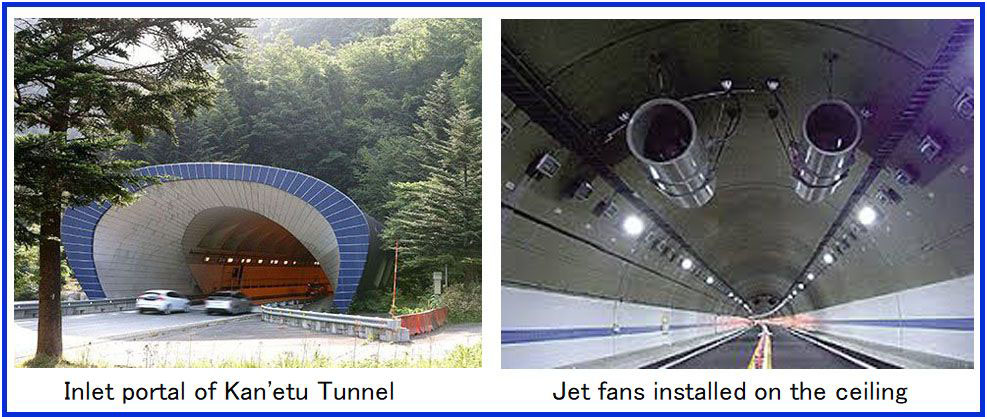

 In the past, automobiles were a major source of public nuisance. However, due to successive tightening of exhaust gas regulations, the emission of pollutants from both gasoline and diesel vehicles has decreased dramatically in recent years. As electric vehicles become more widespread, the emission of pollutants will decrease even further. For this reason, tunnel ventilation facilities are often installed not for diluting pollutants but to ensure the airflow necessary for safe evacuation in the event of a fire. Recently, we see many tunnels with jet fans installed on the ceiling (photo upper right), but it is rare to see fans that are in operation.
 Ventilation fans are regularly in operation in long tunnels such as Kan'etsu Tunnel (11 km, photo upper left), Enasan Tunnel (7 km), and Tokyo Bay Aqua Tunnel (10 km). In the past, long tunnels were mostly mountain tunnels. However, as construction of underground expressways in urban areas progresses, they become the record holder of the longest automobile tunnel. Currently, Yamate Tunnel (19 km) on the Metropolitan Expressway holds the record. Automobile tunnels have become more familiar as they feel like subways.
 Automobile tunnels have a history of serious accidents that have cost lives, such as the fire at Nihonzaka Tunnel and the ceiling panel collapse at Sasago Tunnel. I hope that the ventilation and safety equipment of automobile tunnels will keep assuring the safety of passersby for years to come.
